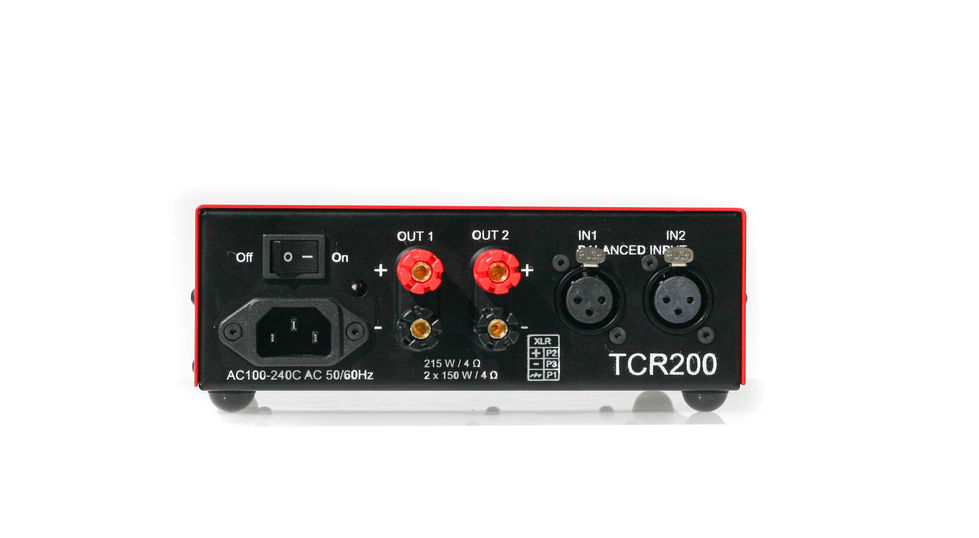

TCR200 is ICEpower 200AS2 board-based small footprint lightweight 2x150W amplifier with balanced XLR inputs for professional and consumer applications.
For consumer applications, you need an RCA-XLR adapter. Typical application architecture PC- streaming services- external audio interface/DAC with volume regulator- amplifier-passive speaker.
The amplifier has universal mains and can work from 110V- 220V mains. Comprehensive protection circuits ensure reliable speaker safety.
The TCR200 Integrated amplifier has 2 years of warranties and support available.
The TCR200 Integrated amplifier does not include a power cord.
To connect the amplifier you need a standard desktop PC power cord available in any electronic shop.
ICEpower 200AS2 board
Key Specifications
-
215 W / 4 Ω per channel ≤ 1 % THD+N, 1 kHz
-
2 x 150 W / 4 Ω < 1 % THD+N, 1 kHz
-
0.004 % THD+N @ 1 kHz, 10 W / 4 Ω
-
50 kHz audio bandwidth
-
< 92 uV A-weighted output noise
-
Minimum load impedance at 3.5 Ω
-
Maximum output voltage / current: 42 Vp / 13 Ap
-
Universal mains (100 – 240 V, 50 – 60 Hz)
-
Size (L x W x H): 158 mm x 77 mm x 36.5 mm (6.23 inch x 3.03 inch x 1.44 inch)
Features
-
Fully integrated amplifier
-
Short circuit and over-current protection
-
Comprehensive monitoring and protection
-
Clip monitor and thermal warning outputs
-
Protect status output
-
Auxiliary power supply output
-
Standby Mode
-
Universal mains
-
EMC and safety pre-approved
-
Simple yet flexible mechanical mounting
-
ICEpower standard connector and pin definition
-
Low build height
-
Prepared for hanger amplifier modules
Benefits
-
No need for additional circuits for simple applications
-
Ensures reliable and robust end-products
-
Keeps track of module operation and protects the module from overload
-
Allows the end-product system to react proactively, preventing system shutdown and enabling “Music at All Times”
-
Indicator for module protection shutdown
-
Supply for analogue and control circuits in e.g. a signal front-end and standby supply
-
ErP (1275/2008/EC) and Energy Star® v3.0 compliant
-
No need for region-specific variants
-
Suitable for CE and FCC-approved designs
-
Easy mechanical integration and thermal management
-
Allows reuse of front-end hardware
-
Usable in 1U rack enclosures
-
Extra audio channels e.g. 3-way active speakers.
